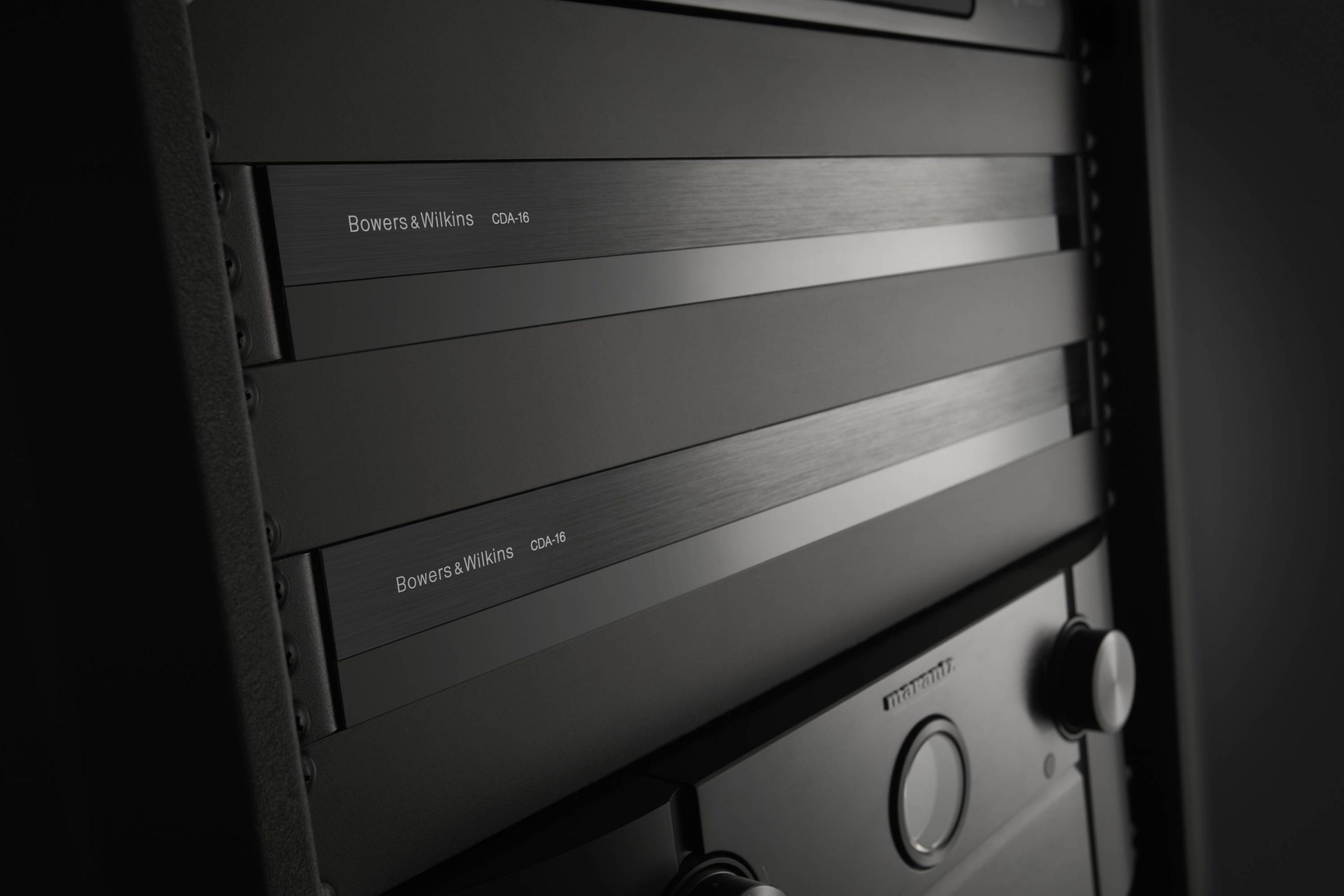

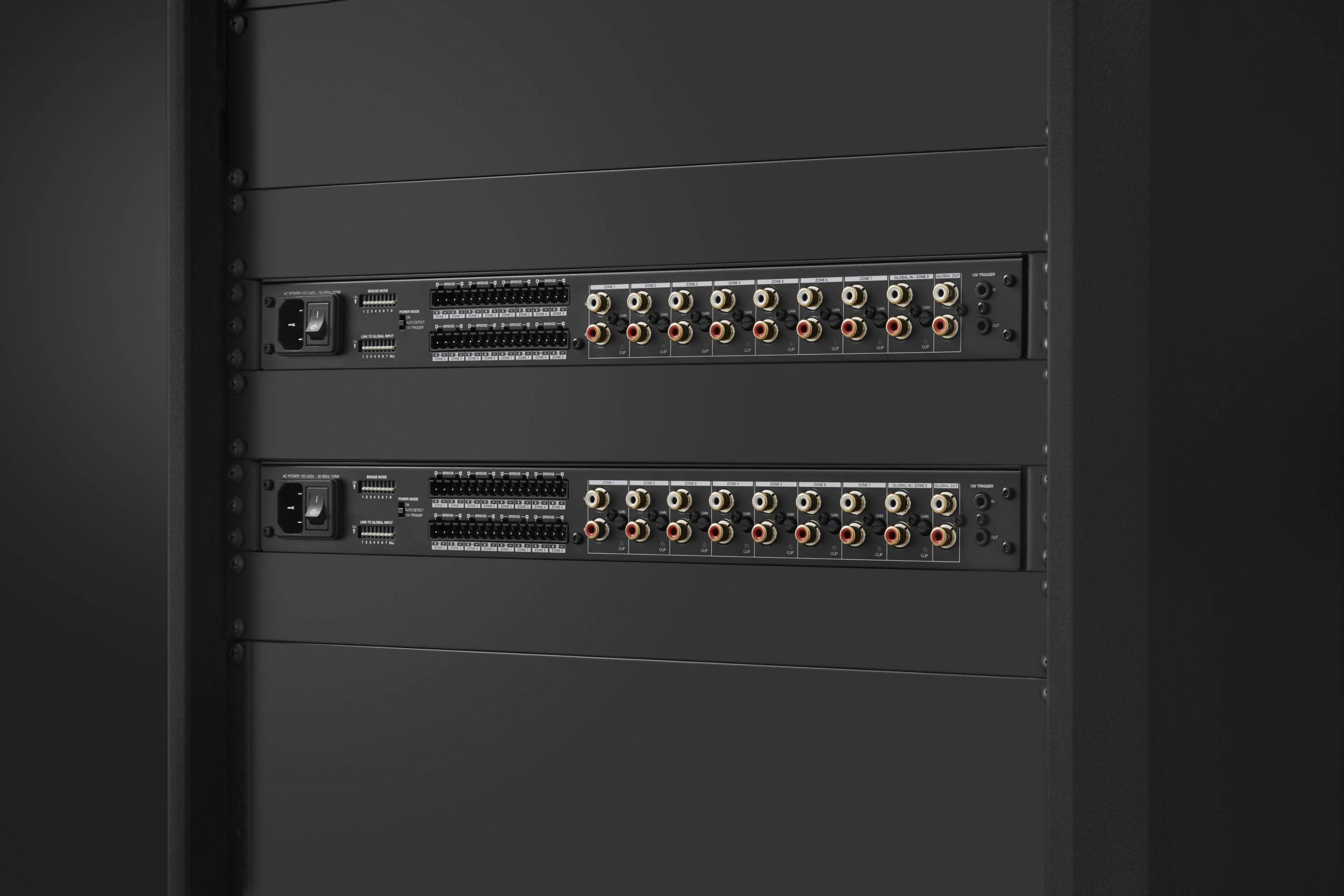

B&W annonce son ampli 16 canaux CDA-16, voir ici :
https://www.homecinema-fr.com/news-hcfr-bw-lance-un-nouvel-ampli-cda-16-canaux/
SPECIFICATIONS :
Load impedance range : >3Ω per channel (>6Ω in bridge mode)
Output Power per channel, non-clipped : >50W into 8Ω, >100W into 4Ω
Output Power bridge mode, non-clipped : >200W into 8Ω
Output Power total, all channels : >400W short term, >200W continuous average
DC offset voltage : <50mV
Frequency Response (-3dB) : <10Hz to >50kHz, any load impedance
Frequency response accuracy 20Hz-20kHz : ±0.5dB
Signal to Noise ratio (Ref. 50W/8Ω) : >100dB A-Weighted
THD+N (1kHz, 12.5W, 4Ω) : typically 0.05%
Voltage Gain : 34.9dB to - infinity, adjustable
Input impedance : 15KΩ
Maximum input voltage : 6.8V peak (4.8V rms sine wave)
Signal sense threshold : 2.5mV (independent of Gain setting)
Wake-up time : <0.2s (If other zones active), <2s (From all zones inactive)
Turn-off time : 15 minutes from last signal detected
12V trigger input threshold: typically 3V (recommended input is 5-15V)
DISPONIBILITÉ 15 APRIL, AU TARIF DE 2000€ TTC.
CDA-16_Sell_Sheet.pdf- (1.62 Mio) Téléchargé 55 fois
- CDA-16_Installation_Instructions.pdf
- (1.17 Mio) Téléchargé 57 fois
- CDA-16_Manual.pdf
- (6.4 Mio) Téléchargé 64 fois
Hugo
